SANI-TECH auger compactors pre-crush and compact in one powerful motion. While processing material, the auger continuously runs in a forward direction, crushing and reducing the size of what it is fed. This enables it to compact up to five times faster than conventional hydraulic compactors.
The Model 1554/36 was designed to handle larger corrugate boxes and other larger items of trash / waste / recyclables.
- Cardboard Recyclers
- Distribution Centers
- Industrial Parks
- Moving Companies
- Municipalities
- Manufacturers
- Pallet Recyclers
- Thrift Stores
- Wood Recyclers
No need to flatten boxes, store bales, or bother with maintaining messy hydraulic systems. The Sani-Tech 1554/46 Corugate Compactor will compact 8-10 tons of material in a 40 yd container. The material will not bind inside the container, a common problem with ram-style compactors. The spiral feed and destruction of the boxes prevents material spilling from the container during bin seperation.
Standard Features Include:
Replaceable Cast Auger End Wear Plate, Adjustable Running Time, Bin Near Full Indicator, "Almond" Machinery Enamel Finish, Liquid Tight Auger Chamber, Adjustable Compaction Density, Safety Interlock System, Key-Lock Start/Reverse Switch, Mushroom Stop Switch.
Optional Features Include:
Cart Dumping Systems, Exhaust Fans, Bin Gone Sensors, Odor & Insect Controls, Photo-Eye Start, Custom Paint Colors, Fire Suppression Systems.
Product Video Clip(s):
Click Here to see the Model ST1554/36 in ACTION!
Model ST1554/36 Specifications
| Hopper Capacity |
5 Cubic Yards |
| Auger Diameter |
Tapered 54" to 36" |
| Auger RPM |
8 |
| Motor |
15 HP |
| Displacement Rate |
314 Cubic Yards / Hour |
| Electrical |
240V / 480V - 3 Phase |
| Amperage |
35A / 18A |
| Drive |
Electro-Mechanical |
| Control Panel |
UL Listed 110 Volt |
| Weight |
5400 Lbs. |
| Auger Torque |
295,000 In. lbs. |

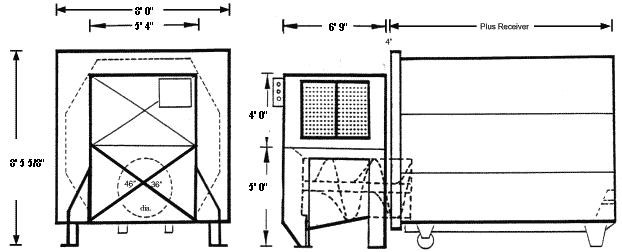

Model ST1554/36 Dimensions
| Model / Bin Size |
Overall Length |
Bin Length |
Bin Weight |
| ST1554/36 - 15 |
16' - 9" |
9' - 8" |
4,100 lbs. |
| ST1554/36 - 20 |
19' - 9" |
12' - 8" |
4,700 lbs. |
| ST1554/36 - 25 |
22' - 9" |
15' - 8" |
5,400 lbs. |
| ST1554/36 - 30 |
25' - 9" |
18' - 8" |
5,800 lbs. |
| ST1554/36 - 35* |
27' - 9" |
20' - 8" |
6,600 lbs. |
| ST1554/36 - 40* |
29' - 9" |
22' - 8" |
7,200 lbs. |
* Request prior confirmation with refuse hauler regarding length of this unit.
