Designed for carboard and bulky material compacting. SANI-TECH auger compactors pre-crush and compact in one powerful motion and do not require the boxes to be broken down. While processing material, the auger continuously runs in a forward direction, crushing and reducing the size of what it is fed. Auger Compactors process material up to five times faster than similar ram-style hydraulic compactors.
The ST1046/36 is designed to compact cardboard and other bulky materials generated by:
- Cardboard Recycling facilities (9-12 ton possible)
- Distribution Centers
- Grocery Stores
- Hospitals
- Moving Companies
- Multi-Family Dwellings
- Office Buildings
- Pallet Recycling
- Retail Stores
- Shopping Malls
- Wood Recycling
Standard Features Include:
Replaceable Cast Auger End Wear Plate, Adjustable Running Time, Bin Near Full Indicator, "Almond" Machinery Enamel Finish, Liquid Tight Auger Chamber, Adjustable Compaction Density, Safety Interlock System, Key-Lock Start/Reverse Switch, Mushroom Stop Switch.
Optional Features Include:
Cart Dumping Systems, Exhaust Fans, Bin Gone Sensors, Odor & Insect Controls, Photo-Eye Start, Custom Paint Colors, Fire Suppression Systems, Click Here to See our Cart Dumpers,
Bin Hole Diaphragm system, Click Here to See our Bin Hole Diaphragm
Product Video Clip(s):
Click Here to see the Model ST1046-36 in ACTION!
Model ST1046/36 Specifications
| Hopper Capacity |
4.5 Cubic Yards |
| Auger Diameter |
Tapered 46" to 36" |
| Auger RPM |
8 |
| Motor |
10 HP |
| Displacement Rate |
270 Cubic Yards / Hour |
| Electrical |
240V / 480V - 3 Phase |
| Amperage |
30A / 15A |
| Drive |
Electro-Mechanical |
| Control Panel |
UL Listed 110 Volt |
| Weight |
4100 Lbs. |
| Auger Torque |
204,000 In. lbs. |

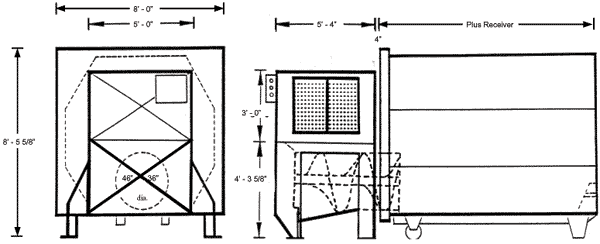

Model ST1046/36 Dimensions
| Model / Bin Size |
|
Overall Length |
|
Bin Length |
|
Bin Weight |
| ST1046/36 - 15 |
|
15' - 4" |
|
9' - 8" |
|
4,100 lbs. |
| ST1046/36 - 20 |
|
18' - 4" |
|
12' - 8" |
|
4,700 lbs. |
| ST1046/36 - 25 |
|
21' - 4" |
|
15' - 8" |
|
5,400 lbs. |
| ST1046/36 - 30 |
|
24' - 4" |
|
18' - 8" |
|
5,800 lbs. |
| ST1046/36 - 35* |
|
26' - 2" |
|
20' - 8" |
|
6,600 lbs. |
| ST1046/36 - 40* |
|
28' - 2" |
|
22' - 8" |
|
7,200 lbs. |
* Request prior confirmation with refuse hauler regarding length of this unit.
