SANI-TECH auger compactors pre-crush and compact in one powerful motion. While processing material, the auger continuously runs in a forward direction, crushing and reducing the size of what it is fed. This enables it to compact up to five times faster than conventional hydraulic compactors.
The ST1040/30 was designed to handle the waste and recyclables generated by:
- Banks
- Cinemas
- Food Processing Plants
- Grocery Stores
- Hospitals
- Multi-Family Dwellings
- Office Buildings
- Prisons
- Restaurants
- Retail Stores
- Schools
- Shopping Malls
Standard Features Include:
Replaceable Cast Auger End Wear Plate, Adjustable Running Time, Bin Near Full Indicator, "Almond" Machinery Enamel Finish, Liquid Tight Auger Chamber, Adjustable Compaction Density, Safety Interlock System, Key-Lock Start/Reverse Switch, Mushroom Stop Switch.
Optional Features Include:
Cart Dumping Systems, Exhaust Fans, Bin Gone Sensors, Odor & Insect Controls, Photo-Eye Start, Custom Paint Colors, Fire Suppression Systems. Click here to see our Cart Dumpers
Product Video Clip(s):
Click Here to see the Model ST1040-30 in ACTION!
Model ST1040/30 Specifications
| Hopper Capacity |
4.5 Cubic Yards |
| Auger Diameter |
Tapered 40" to 30" |
| Auger RPM |
8 |
| Motor |
10 HP |
| Displacement Rate |
270 Cubic Yards / Hour |
| Electrical |
240V / 480V - 3 Phase |
| Amperage |
30A / 15A |
| Drive |
Electro-Mechanical |
| Control Panel |
UL Listed 110 Volt |
| Weight |
4500 Lbs. |
| Auger Torque |
204,000 In. lbs. |

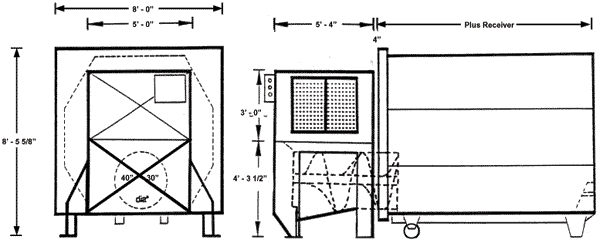

Model ST1040/30 Dimensions
| Model / Bin Size |
Overall Length |
Bin Length |
Bin Weight |
| ST1040/30 - 15 |
15' - 4" |
9' - 8" |
4,100 lbs. |
| ST1040/30 - 20 |
18' - 4" |
12' - 8" |
4,700 lbs. |
| ST1040/30 - 25 |
21' - 4" |
15' - 8" |
5,400 lbs. |
| ST1040/30 - 30 |
24' - 4" |
18' - 8" |
5,800 lbs. |
| ST1040/30 - 35* |
26' - 2" |
20' - 8" |
6,600 lbs. |
| ST1040/30 - 40* |
28' - 2" |
22' - 8" |
7,200 lbs. |
* Request prior confirmation with refuse hauler regarding length of this unit.
