Auger Style Refuse and Recycling Compactors.

ST4060/40

ST4060 Auger CompactorSANI-TECH auger compactors pre-crush and compact in one powerful motion. While processing material, the auger continuously runs in a forward direction, crushing and reducing the size of what it is fed. This enables compaction throughput up to five times faster than similar ram style hydraulic compactors.

The Model ST4060/40 was designed to handle the largest volumes of waste and recyclables generated by:

  • Transfer Stations
  • Distribution Centers & Warehouses
  • Industrial Parks
  • Municipalities
  • Manufacturers
  • Pallet Recycling
  • Wood Recycling

Standard Features Include:

Replaceable Cast Auger End Wear Plate, Adjustable Running Time, Bin Near Full Indicator, "Almond" Machinery Enamel Finish, Liquid Tight Auger Chamber, Adjustable Compaction Density, Safety Interlock System, Key-Lock Start/Reverse Switch, Mushroom Stop Switch.

Optional Features Include:

Cart Dumping Systems, Exhaust Fans, Bin Gone Sensors, Odor & Insect Controls, Photo-Eye Start, Custom Paint Colors, Fire Suppression Systems.

See the ST4060/40 Auger Compactor in Action:


See more videos of the Model ST4060/40 in ACTION!

Model ST4060/40 Specifications

Hopper Capacity 10 Cubic Yards
Auger Diameter Tapered 60" to 36"
Auger RPM 7.5
Motor 40 HP
Displacement Rate 600 Cubic Yards / Hour
Electrical 240V / 480V - 3 Phase
Amperage 96A / 48A
Drive Electro-Mechanical
Control Panel UL Listed 110 Volt
Weight 7400 Lbs.
Auger Torque 780,000 In. lbs.



Model ST4060/40 Dimensions

Model / Bin Size Overall Length Bin Length Bin Weight
ST4060/40 - 15 18' - 4" 9' - 8" 4,100 lbs.
ST4060/40 - 20 21' - 4" 12' - 8" 4,700 lbs.
ST4060/40 - 25 24' - 4" 15' - 8" 5,400 lbs.
ST4060/40 - 30 27' - 4" 18' - 8" 5,800 lbs.
ST4060/40 - 35* 29' - 4" 20' - 8" 6,600 lbs.
ST4060/40 - 40* 31' - 4" 22' - 8" 7,200 lbs.

* Request prior confirmation with refuse hauler regarding length of this unit.

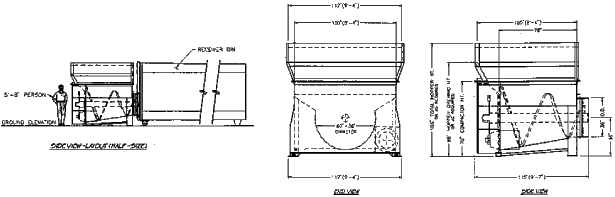

ST4060 36
