Auger Style Refuse and Recycling Compactors.

ST2054/40

ST2054 Auger CompactorSANI-TECH auger compactors pre-crush and compact in one powerful motion. While processing material, the auger continuously runs in a forward direction, crushing and reducing the size of what it is fed. This enables material to be compacted up to five times faster as compared to ram style hydraulic compactors.

The Model ST2054/40 was designed to handle high volumes of waste and recyclable materials generated by:

  • Cardboard Recycling Facilities
  • Distribution Centers & Warehouses
  • Industrial Plants & Parks
  • Municipalities
  • Manufacturers
  • Pallet Recycling ( pallet destruction )
  • Thrift Store Waste reduction
  • Wood Recycling Applications

Standard Features Include:

Replaceable Cast Auger End Wear Plate, Adjustable Running Timer, Bin Near Full Indicator, "Almond" Machinery Enamel Finish, Liquid Tight Auger Chamber, Adjustable Compaction Density, Safety Interlock System, Key-Lock Start/Reverse Switch, Mushroom Stop Switch.

Optional Features Include:

Cart Dumping Systems, Exhaust Fans, Bin Gone Sensors, Odor & Insect Controls, Photo-Eye Start, Custom Paint Colors, Fire Suppression Systems.

Product Video Clip(s):
Click Here to see the Model ST2054/40 in ACTION!

Model ST2054/40 Specifications

Hopper Capacity 6.0 Cubic Yards
Auger Diameter Tapered 54" to 40"
Auger RPM 6
Motor 20 HP
Displacement Rate 350 Cubic Yards / Hour
Electrical 240V / 480V - 3 Phase
Amperage 60A / 30A
Drive Electro-Mechanical
Control Panel UL Listed 110 Volt
Weight 6500 Lbs.
Auger Torque 500,000 In. lbs.

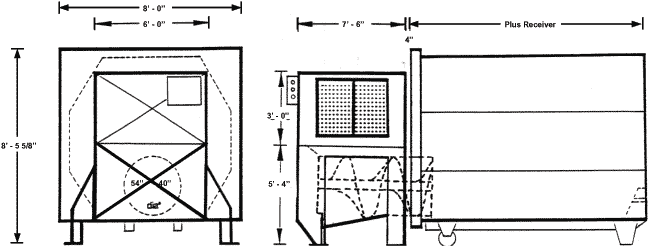

Model ST2054/40 Dimensions

Model / Bin Size Overall Length Bin Length Bin Weight
ST2054/40 - 15 17' - 6" 9' - 8" 4,100 lbs.
ST2054/40 - 20 20' - 6" 12' - 8" 4,700 lbs.
ST2054/40 - 25 23' - 6" 15' - 8" 5,400 lbs.
ST2054/40 - 30 26' - 6" 18' - 8" 5,800 lbs.
ST2054/40 - 35* 28' - 4" 20' - 8" 6,600 lbs.
ST2054/40 - 40* 30' - 4" 22' - 8" 7,200 lbs.

* Request prior confirmation with refuse hauler regarding length of this unit.

ST2054 40
