Auger Style Refuse and Recycling Compactors.

ST1554/36

ST1554 Auger CompactorSANI-TECH auger compactors pre-crush and compact in one powerful motion. While processing material, the auger continuously runs in a forward direction, crushing and reducing the size of what it is fed. This enables it to compact up to five times faster than conventional hydraulic compactors.

The Model 1554/36 was designed to handle larger corrugate boxes and other larger items of trash / waste / recyclables.

  • Cardboard Recyclers
  • Distribution Centers
  • Industrial Parks
  • Moving Companies
  • Municipalities
  • Manufacturers
  • Pallet Recyclers
  • Thrift Stores
  • Wood Recyclers

No need to flatten boxes, store bales, or bother with maintaining messy hydraulic systems. The Sani-Tech 1554/46 Corugate Compactor will compact 8-10 tons of material in a 40 yd container.  The material will not bind inside the container, a common problem with ram-style compactors. The spiral feed and destruction of the boxes prevents material spilling from the container during bin seperation.

Standard Features Include:

Replaceable Cast Auger End Wear Plate, Adjustable Running Time, Bin Near Full Indicator, "Almond" Machinery Enamel Finish, Liquid Tight Auger Chamber, Adjustable Compaction Density, Safety Interlock System, Key-Lock Start/Reverse Switch, Mushroom Stop Switch.

Optional Features Include:

Cart Dumping Systems, Exhaust Fans, Bin Gone Sensors, Odor & Insect Controls, Photo-Eye Start, Custom Paint Colors, Fire Suppression Systems.

Product Video Clip(s):
Click Here to see the Model ST1554/36 in ACTION!

Model ST1554/36 Specifications

Hopper Capacity 5 Cubic Yards
Auger Diameter Tapered 54" to 36"
Auger RPM 8
Motor 15 HP
Displacement Rate 314 Cubic Yards / Hour
Electrical 240V / 480V - 3 Phase
Amperage 35A / 18A
Drive Electro-Mechanical
Control Panel UL Listed 110 Volt
Weight 5400 Lbs.
Auger Torque 295,000 In. lbs.

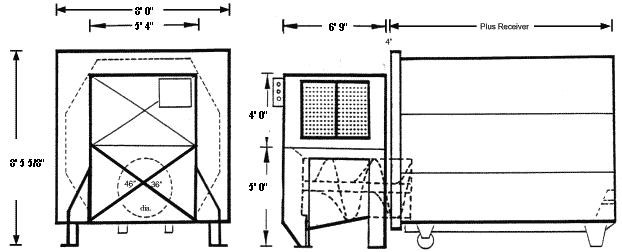

Model ST1554/36 Dimensions

Model / Bin Size Overall Length Bin Length Bin Weight
ST1554/36 - 15 16' - 9" 9' - 8" 4,100 lbs.
ST1554/36 - 20 19' - 9" 12' - 8" 4,700 lbs.
ST1554/36 - 25 22' - 9" 15' - 8" 5,400 lbs.
ST1554/36 - 30 25' - 9" 18' - 8" 5,800 lbs.
ST1554/36 - 35* 27' - 9" 20' - 8" 6,600 lbs.
ST1554/36 - 40* 29' - 9" 22' - 8" 7,200 lbs.

* Request prior confirmation with refuse hauler regarding length of this unit.
