Auger Style Refuse and Recycling Compactors.

ST1546/36 & ST1546/36IN

ST1546 Auger CompactorSANI-TECH auger compactors pre-crush and compact in one powerful motion. While processing material, the auger continuously runs in a forward direction, crushing and reducing the size of what it is fed. This enables it to compact up to five times faster than conventional ram style hydraulic compactors.

The Model ST1546/36 & ST1546/36IN are designed to handle the waste and recyclables generated by:

  • Cardboard Recycling
  • Distribution Centers
  • Industrial Parks
  • Moving Companies
  • Municipalities
  • Manufacturers
  • Pallet Recycling
  • Thrift Store waste
  • Wood Recycling

The Model ST1546/36IN (Industrial) has a longer / stronger auger shaft, heavier gearbox and bearings. It is designed to handle a steady stream of large and bulky materials.

Standard Features Include:

Replaceable Cast Auger End Wear Plate, Adjustable Running Time, Bin Near Full Indicator, "Almond" Machinery Enamel Finish, Liquid Tight Auger Chamber, Adjustable Compaction Density, Safety Interlock System, Key-Lock Start/Reverse Switch, Mushroom Stop Switch.

Optional Features Include:

Cart Dumping Systems, Exhaust Fans, Bin Gone Sensors, Odor & Insect Controls, Photo-Eye Start, Custom Paint Colors, Fire Suppression Systems, Bin Hole Diaphragm system ( Eliminates liquid & material spills when a full bin is disconnected from the Compactor)

Product Video Clip(s):
Click Here to see the Model ST1546/36 in ACTION!

Model ST1546/36 Specifications

Hopper Capacity 4.8 Cubic Yards
Auger Diameter Tapered 46" to 36"
Auger RPM 9
Motor 15 HP
Displacement Rate 314 Cubic Yards / Hour
Electrical 240V / 480V - 3 Phase
Amperage 35A / 18A
Drive Electro-Mechanical
Control Panel UL Listed 110 Volt
Weight 5000 Lbs.
Auger Torque 270,000 In. lbs.

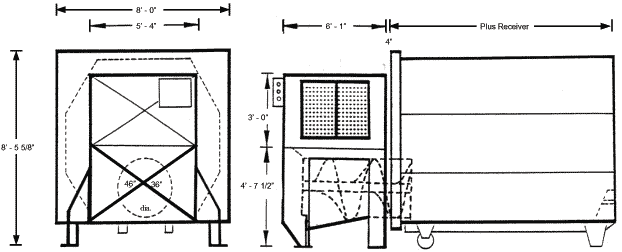

Model ST1546/36 Dimensions

Model / Bin Size Overall Length Bin Length Bin Weight
ST1546/36 - 15 16' - 1" 9' - 8" 4,100 lbs.
ST1546/36 - 20 19' - 1" 12' - 8" 4,700 lbs.
ST1546/36 - 25 22' - 1" 15' - 8" 5,400 lbs.
ST1546/36 - 30 25' - 1" 18' - 8" 5,800 lbs.
ST1546/36 - 35* 27' - 1" 20' - 8" 6,600 lbs.
ST1546/36 - 40* 29' - 1" 22' - 8" 7,200 lbs.

* Request prior confirmation with refuse hauler regarding length of this unit.

ST1546 36
