Auger Style Refuse and Recycling Compactors.

ST1540/30 & ST1540/30IN

ST1540 Auger CompactorSANI-TECH auger compactors pre-crush and compact in one powerful motion. While processing material, the auger continuously runs in a forward direction, crushing and reducing the size of what it is fed. This enables it to compact up to five times faster than conventional hydraulic compactors.

The Model ST1540/30 & ST1540/30IN are designed to provide the highest density (tonnage) bin loads processing trash, waste and recyclables generated by:

  • Business Parks
  • Food Processing Plants
  • Hospitals
  • Industrial Parks
  • Municipalities
  • Manufacturers
  • Prisons
  • Shopping Malls
  • Thrift Stores

The Model ST1540/30IN (Industrial) has a longer / stronger auger shaft, heavier gearbox and bearings. It is designed to handle a steady stream of large and bulky materials.

Standard Features Include:

Replaceable Cast Auger End Wear Plate, Adjustable Running Time, Bin Near Full Indicator, "Almond" Machinery Enamel Finish, Liquid Tight Auger Chamber, Adjustable Compaction Density, Safety Interlock System, Key-Lock Start/Reverse Switch, Mushroom Stop Switch.

Optional Features Include:

Cart Dumping Systems, Exhaust Fans, Bin Gone Sensors, Odor & Insect Controls, Photo-Eye Start, Custom Paint Colors, Fire Suppression Systems.

Product Video Clip(s):
Click Here to see the Model ST1540/30 in ACTION!

Model ST1540/30 Specifications

Hopper Capacity 4.8 Cubic Yards
Auger Diameter Tapered 40" to 30"
Auger RPM 9
Motor 15 HP
Displacement Rate 314 Cubic Yards / Hour
Electrical 240V / 480V - 3 Phase
Amperage 35A / 18A
Drive Electro-Mechanical
Control Panel UL Listed 110 Volt
Weight 5000 Lbs.
Auger Torque 270,000 In. lbs.

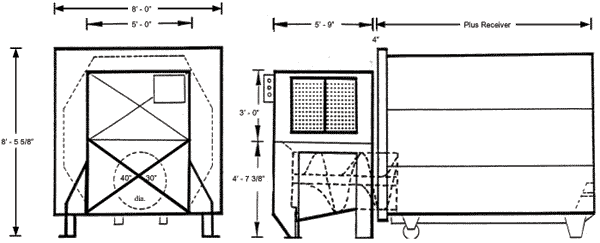

Model ST1540/30 Dimensions

Model / Bin Size Overall Length Bin Length   Bin Weight
ST1540/30 - 15 15' - 9" 9' - 8"   4,100 lbs.
ST1540/30 - 20 18' - 9" 12' - 8"   4,700 lbs.
ST1540/30 - 25 21' - 9" 15' - 8"   5,400 lbs.
ST1540/30 - 30 24' - 9" 18' - 8"   5,800 lbs.
ST1540/30 - 35* 26' - 9" 20' - 8"   6,600 lbs.
ST1540/30 - 40* 28' - 9" 22' - 8"   7,200 lbs.

* Request prior confirmation with refuse hauler regarding length of this unit.

ST1540 30
