Auger Style Refuse and Recycling Compactors.

ST1040/30

Recycling Unit 2 225x300 logo

SANI-TECH auger compactors pre-crush and compact in one powerful motion. While processing material, the auger continuously runs in a forward direction, crushing and reducing the size of what it is fed. This enables it to compact up to five times faster than conventional hydraulic compactors.

The ST1040/30 was designed to handle the waste and recyclables generated by:

  • Banks
  • Cinemas
  • Food Processing Plants
  • Grocery Stores
  • Hospitals
  • Multi-Family Dwellings
  • Office Buildings
  • Prisons
  • Restaurants
  • Retail Stores
  • Schools
  • Shopping Malls

Standard Features Include:

Replaceable Cast Auger End Wear Plate, Adjustable Running Time, Bin Near Full Indicator, "Almond" Machinery Enamel Finish, Liquid Tight Auger Chamber, Adjustable Compaction Density, Safety Interlock System, Key-Lock Start/Reverse Switch, Mushroom Stop Switch.

Optional Features Include:

Cart Dumping Systems, Exhaust Fans, Bin Gone Sensors, Odor & Insect Controls, Photo-Eye Start, Custom Paint Colors, Fire Suppression Systems. Click here to see our Cart Dumpers

Product Video Clip(s):
Click Here to see the Model ST1040-30 in ACTION!

Model ST1040/30 Specifications

Hopper Capacity 4.5 Cubic Yards
Auger Diameter Tapered 40" to 30"
Auger RPM 8
Motor 10 HP
Displacement Rate 270 Cubic Yards / Hour
Electrical 240V / 480V - 3 Phase
Amperage 30A / 15A
Drive Electro-Mechanical
Control Panel UL Listed 110 Volt
Weight 4500 Lbs.
Auger Torque 204,000 In. lbs.

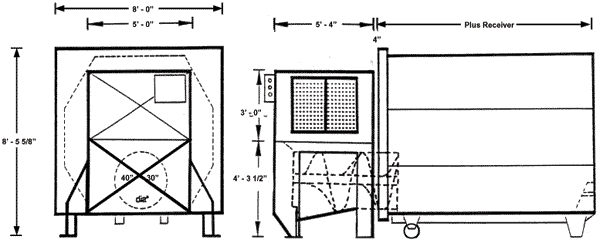

Model ST1040/30 Dimensions

Model / Bin Size Overall Length Bin Length Bin Weight
ST1040/30 - 15 15' - 4" 9' - 8" 4,100 lbs.
ST1040/30 - 20 18' - 4" 12' - 8" 4,700 lbs.
ST1040/30 - 25 21' - 4" 15' - 8" 5,400 lbs.
ST1040/30 - 30 24' - 4" 18' - 8" 5,800 lbs.
ST1040/30 - 35* 26' - 2" 20' - 8" 6,600 lbs.
ST1040/30 - 40* 28' - 2" 22' - 8" 7,200 lbs.

* Request prior confirmation with refuse hauler regarding length of this unit.

ST1040 30

Download Printable PDF Version of this Page. If you don't have the Acrobat Reader installed, download it here.
