Auger Style Refuse and Recycling Compactors.

SC1040/30

SC1040 Self Contained Auger CompactorSANI-TECH Auger Compactors pre-crush and compact in one powerful motion. While processing material, the auger continuously runs in a forward direction, crushing and reducing the size of what it is fed. This enables it to compact up to five times faster than conventional hydraulic compactors.

The Model SC1040/30 was designed to handle the wet, hazardous and/or messy waste generated by:

  • Cinemas
  • Food Processing Plants
  • Grocery Stores
  • Hospitals
  • Multi-Family Dwellings
  • Office Buildings
  • Prisons
  • Restaurants
  • Schools
  • Shopping Malls

Standard Features Include:

100% Liquid Tight System, Replaceable Cast Auger End Wear Plate, Adjustable Running Time, Bin Near Full Indicator, "Almond" Machinery Enamel Finish, Liquid Tight Auger Chamber, Adjustable Compaction Density, Safety Interlock System, Key-Lock Start/Reverse Switch, Mushroom Stop Switch.

Optional Features Include:

Cart Dumping Systems, Exhaust Fans, Odor & Insect Controls, Photo-Eye Start, Custom Paint Colors, Fire Suppression Systems, Click Here to see our Cart Dumpers


Product Video Clip(s):
Click Here to see Sani-Tech Auger Compactors in ACTION!

Model SC1040/30 Specifications

Hopper Capacity 4.3 Cubic Yards
Auger Diameter Tapered 40" to 30"
Auger RPM 10
Motor 10 HP
Displacement Rate 270 Cubic Yards / Hour
Electrical 240V / 480V - 3 Phase
Amperage 30A / 15A
Drive Electro-Mechanical
Control Panel UL Listed 110 Volt
Weight See Dimensions table below
Auger Torque 204,000 In. Lbs.

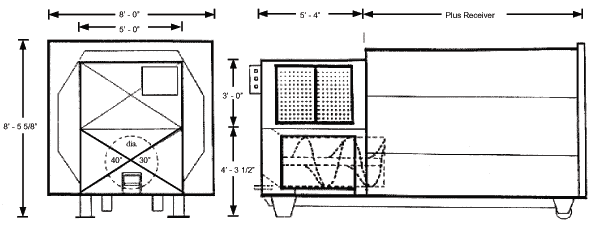

Model SC1040/30 Dimensions

Model / Bin Size Overall Length Bin Weight
ST1040/30 - 15 15' - 0" 6,600 lbs
ST1040/30 - 20 18' - 0" 7,200 lbs
ST1040/30 - 25 21' - 0" 7,900 lbs
ST1040/30 - 30 24' - 0" 8,400 lbs
ST1040/30 - 35 * 26' - 0" 9,000 lbs

* Request prior confirmation with refuse hauler regarding length of this unit.

SC1040 30
